Orion 4000 & 20000 –
From 20 MW Cluster
Solution To 100 MW
Plant Concept
The standardised Orion cluster is a scalable solution engineered for seamles integration into large-scale electrolyser projects. Developed in collaboration with leading EPC partners, it delivers the critical core of a high-performance electrolyser plant.

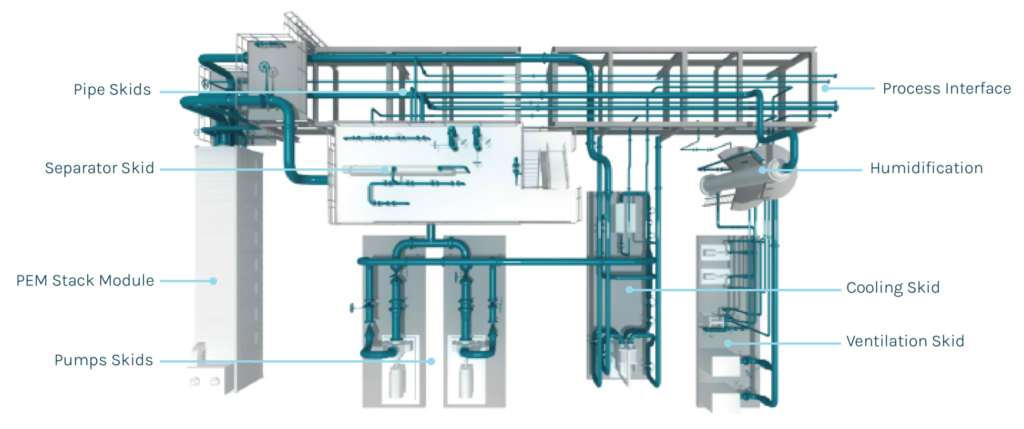

Designed to maximise efficiency, reliability, and operational simplicity, each cluster functions independently, enhancing turn-down capability and overall system flexibility. Its skid-based architecture enables efficient transport and rapid integration, while a robust redundancy strategy and a design for service ensures exceptional availability and uptime.

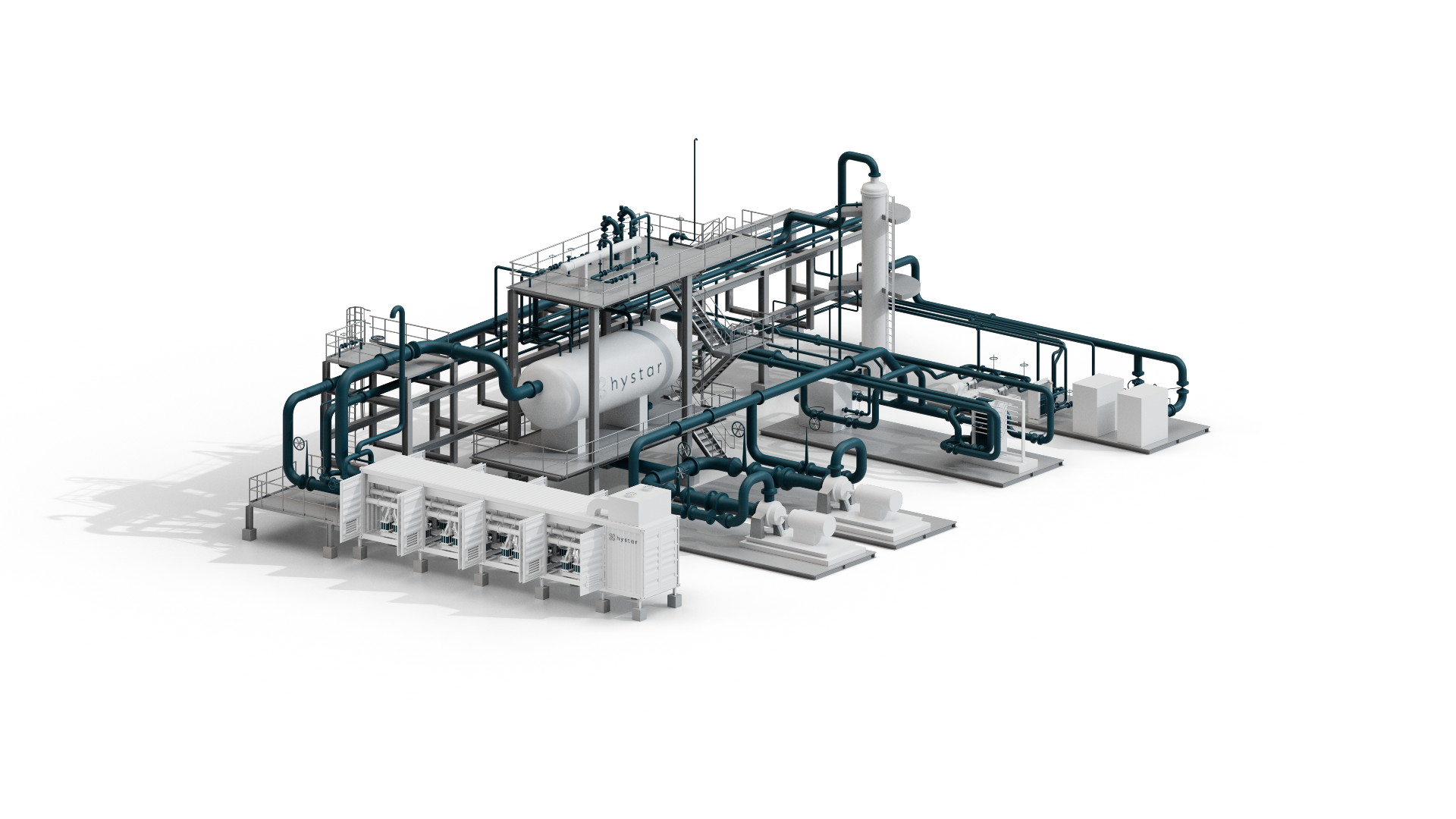

Plant concept developed in collaboration with McDermott
Orion is Hystar’s standardized 20 MW cluster that acts as the repeatable building block for gigawatt-scale green hydrogen plants.

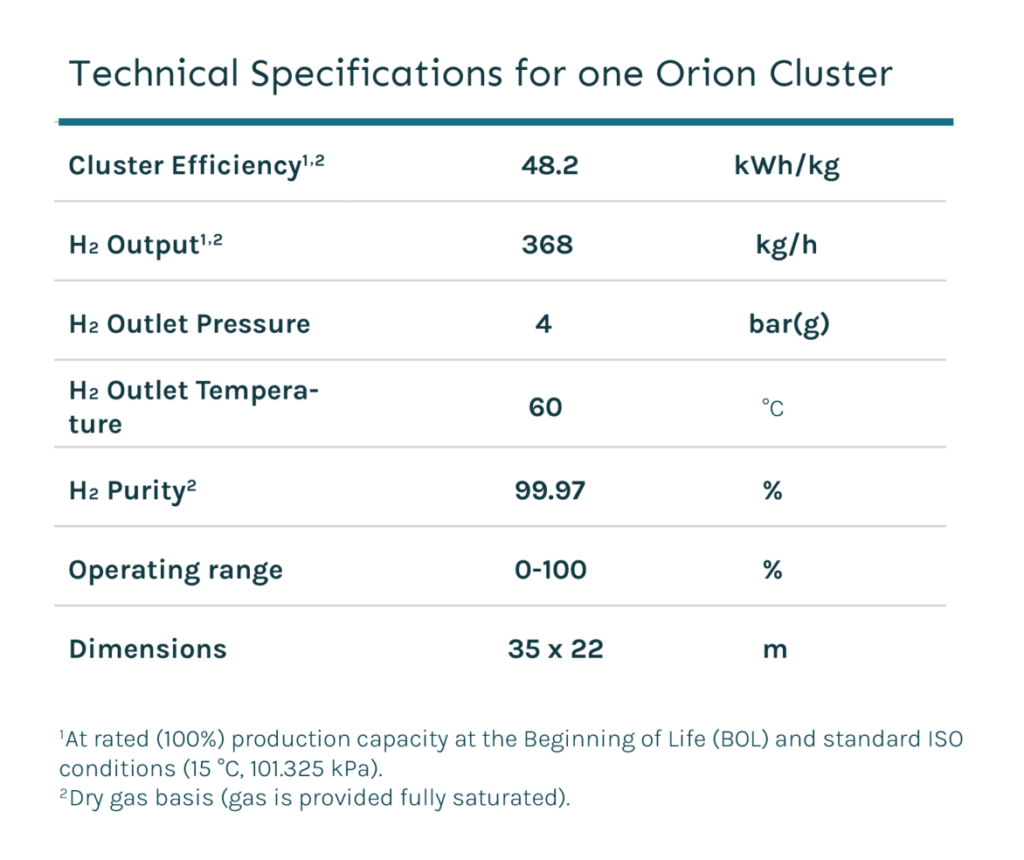

A single 20 MW Orion cluster produces 368 kg of hydrogen per hour at rated capacity, with a cluster efficiency of 48.2 kWh/kg.
Orion clusters are combined behind a single balance of plant to scale from tens of megawatts to 1 GW and beyond, without re-engineering the underlying design at each capacity increase.
Hystar developed the Orion cluster concept in collaboration with McDermott, a global engineering, procurement, and construction (EPC) company, including a turnkey 100 MW green hydrogen plant layout built from Orion clusters.
Orion clusters are combined behind a single balance of plant to scale from tens of megawatts to 1 GW and beyond, without re-engineering the underlying design at each capacity increase.
